Printer Recalibration after Changing Paper

  1. Go to Start and find Devices and Printers in the Control Panel.

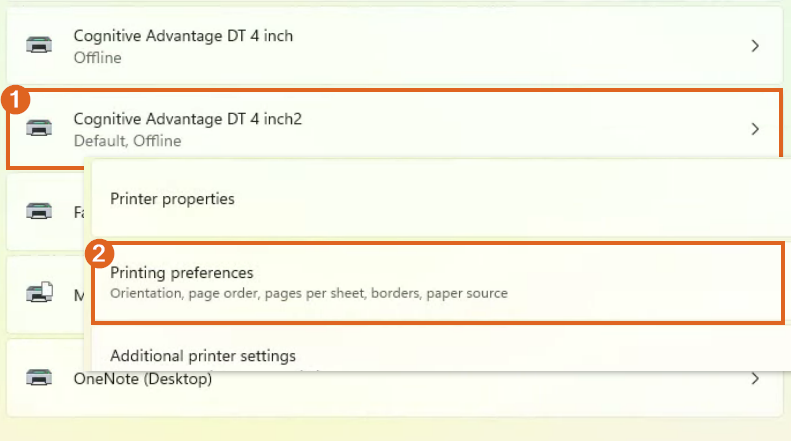

  2. Right-click on the Cognitive Advantage 4 inch2 printer.
    Note: If using the stylus that came with the truck computer, hold the button on the side of the stylus then choose the Printer icon. If using something other than the default stylus, hold on the Printer icon until a circle is drawn around the icon. Lift off the screen and the menu will display.
  3. Go to Printing preferences / Cognitive Advantage 4 inch.

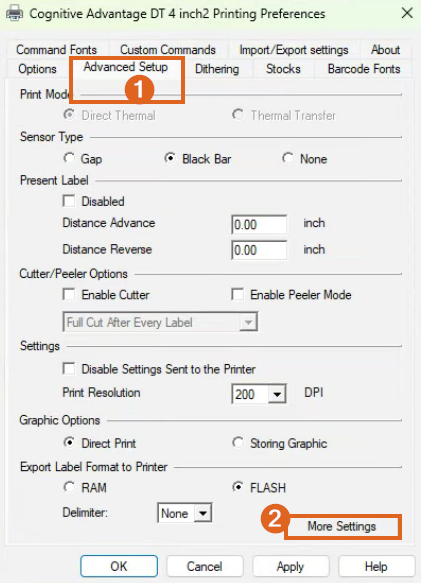

  4. Select the Advanced Setup tab then choose More Settings.

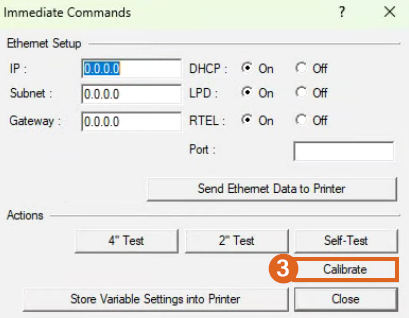

  5. Select Calibrate. One inch of paper will come out of the printer.
  6. When done, select Close then OK.
  7. Repeat Steps 2 - 6 and choose Cognitive Advantage 4 inch2 for Step 3.
